99B-3234 - FRONT Spartan K2, K3 MountainMaster IFS1460 / IFS1660 / 16K+ / Tiffin Allegro Bus w/ PowerGlide Chassis Reyco IFS (Koni EVO)

99B-3234 - FRONT Spartan K2, K3 MountainMaster IFS1460 / IFS1660 / 16K+ / Tiffin Allegro Bus w/ PowerGlide Chassis Reyco IFS (Koni EVO)

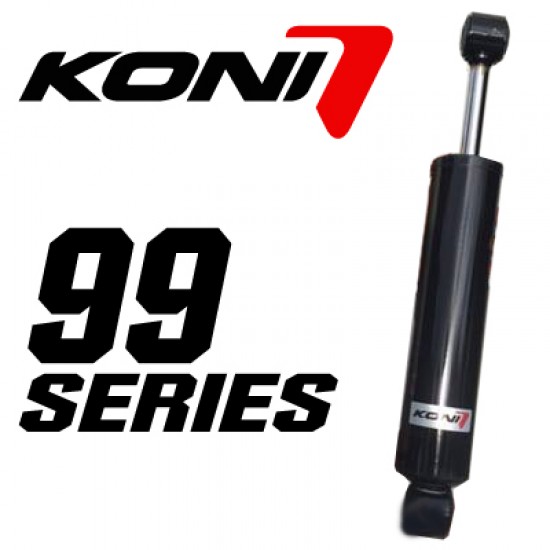

Experience a smooth controlled ride on your Class A motor home with Koni EVO 99 shock absorbers. Koni's patented open intake valves ensure that you get a smooth ride along with enough force to keep your RV from bouncing down the road. EVO 99 is especially good on independent front suspensions that have a limited amount of shock travel. Large piston holes and custom tuned valve stack ensure that you have extra body control when you need it without undue harshness. You don't want poor road conditions to spoil your cross-country trip. Our 50mm bore piston reduces internal pressure for smooth operation over rough roads, and our digressive valve stack and modular piston design control bouncing over bridges and large bumps.

The main difference between the 8805 and the 99 series piston is that it is almost 40% larger than the 8805 series (50 mm vs 36). Which means it can take a lot more force, or the same force with less pressure. This improves durability and performance. The 99 series is also Koni's latest shock design. It was developed for high end motorcoaches in Europe, and Koni is just starting to introduce it in America in the RV market. Both shocks control up and down movement, but Koni has found a better balance between the two with the 99 series setting.

For 18K+ front axle ratings and heavily loaded coaches, we recommend the High Force EVO for greater control.

Applications:

• 2004-2024 Spartan K2, K3 IFS 16K w/ Tuthill (Reyco Granning) Front IFS

• 2000-2024 Spartan MountainMaster IFS1460S 14K to 16K Front IFS (DOES NOT fit Reyco IFS1460T IFS due to clearance issues)

• 2004-2024 Spartan MountainMaster IFS1660 16K Front Front IFS

• Tiffin Allegro Bus w/ PowerGlide Chassis (Reyco Granning IFS) Front IFS (DOES NOT fit Reyco IFS1460T IFS due to clearance issues)

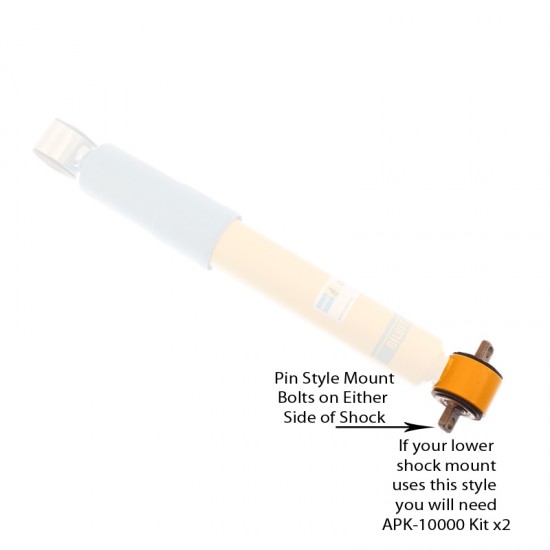

Note: Some Spartan front IFS systems use a lower shock mounting bracket that is not compatible with the Koni mounting. When replacing Bilstein part # BE5-6199-H0, BE5-6199-H1 or 24-061999 you may need to also order kit APK-10000 in order to mount these shocks.
